Model: LTR-3 | Model: LTR-3 | Smart Loadcell Transmitter

LTR-3 Smart Loadcell Transmitter

DIN Rail Mount · 6.2mm Width · Modbus RTU · 0-10V/4-20mA · 100% Domestic Design

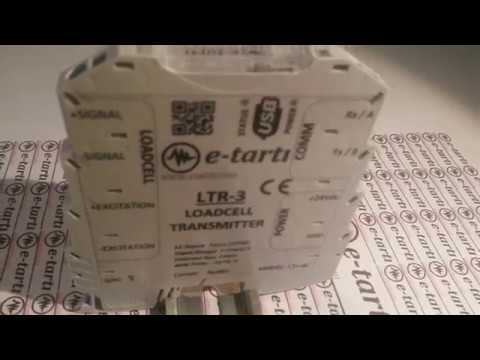

LTR-3 is a smart Din-Rail signal converter for loadcell applications. Thanks to its small 6mm dimensions, it can fit all type of industrial applications. Stable and fast measuring features helps to adopt data from the sensor. Easy configuration via USB is also makes it faster setup. RS232/485 and Analog options can be chosen. Updating device firmware can also be done via USB connection.

6.2 mm thickness. Designed for small sizes and tight spaces.

Özellikle sistem analizlerinde ve laboratuvarlarda anlık gerçek data grafik izlemesi yapılabilmektedir. Elde edilen veriler DataViewer & Computer2 yazılımları ile kayıt altına alınabilmektedir.

Documents

LTR-3 Technical Information

Product Details

Device

Status LEDs

5 pcs Status LEDs

Digital Inputs

Optional 2 pcs digital inputs (5-24V)

Digital Outputs

Internal 1 pcs TTL / Optional 2 pcs TTL Outputs (100mA)

A/D Converter

Minimum Input

0.02 µV/Division

Load Cell Input

350-1000 Ohm (Maximum 10 Loadcells)

Internal Resolution

24bits / 16.000.000

Measurement Speed

3840 samples/second

Load Cell Excitation

5Vdc

Calibration

Calibration Type

Load Calibration or Digital e-CAL Calibration

Options

Digital Outputs

Internal 1 pcs TTL / Optional 2 pcs TTL Outputs (100mA)

Digital Inputs

Optional 2 pcs digital inputs (5-24V)

Analog Inputs

Optional 2 channel 0-10V or 4-20mA input

Analog Outputs

1 channel 12bits 0-10V voltage and 4/20mA current output (16bits on request)

Communication

Serial Output 1

RS232 or RS485 Communication (Modbus RTU/ASCII, 1200-115200bps)

Serial Output 2

Optional RS485 Output

Working Conditions

Supply / Power

24Vdc (+/- % 10) / 5W maximum (Optional 6V-9V-12V Supply Voltages)

Case

Din-Rail Type Plastic Enclosure

Working Temperature

-20/70°C

Dimensions

93 × 102 × 6 mm

Protection Class

IP54

Load Cell Signal Conversion

Load Cell Signal Conversion ideal solution for applications

PLC/SCADA Integration

PLC/SCADA Integration ideal solution for applications

Industrial Weighing Systems

Industrial Weighing Systems ideal solution for applications

Remote Monitoring

Remote Monitoring ideal solution for applications

DIN Rail Mounting

DIN Rail Mounting ideal solution for applications

Multi-Channel Systems

Multi-Channel Systems ideal solution for applications

LTR-3 can be expanded with the following options in addition to the standard model.

2 pcs TTL Digital Outputs

2 pcs Digital Inputs (5-24V)

2 channel 0-10V or 4-20mA Analog Input

12bits/16bits Analog Output

Optional RS485 Output

6V-9V-12V Supply Voltages

PT100-PT1000 Temperature Sensor

LTR-3 — DIN Rail Mount

93 × 102 × 6 mm

Plastic Enclosure · DIN Rail Mount · IP54

Configuration Software

LTR-3 quick configuration and test software.

Download & Details →

DataViewer

Real-time data graph monitoring and recording software.

Download & Details →

Firmware Update

LTR-3 firmware update tool.

Download & Details →

Modbus RTU Integration

Modbus RTU integration over RS485.

Technical Manual →

LTR-3 Smart Loadcell Transmitter
